     Philips ---    Compact Fluorescent Non Integrated    ---

Previous ‹‹ » Next

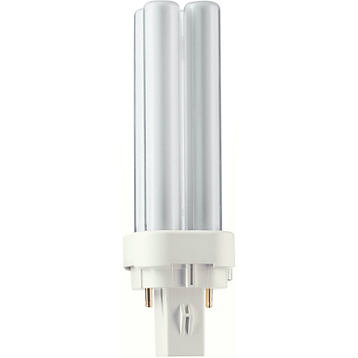

Energy-saving compact fluorescent lamps Compact long-arc low-pressure mercury discharge lamp Envelope consists of 4 parallel narrow fluorescent tubes

General Characteristics
Cap-Base G24d-1
Cap-Base Information 2P
Life to 10% failures EM 6500 hr
Life to 50% failures EM 10000 hr
LSF EM 2000h Rated,3h cycle 99 %
LSF EM 4000h Rated,3h cycle 98 %
LSF EM 6000h Rated,3h cycle 92 %
LSF EM 8000h Rated,3h cycle 78 %

Light Technical Characteristics
Colour Code 840 [CCT of 4000K]
Colour Rendering Index 82 Ra8
Colour Designation Cool White
Colour Temperature 4000 K
Luminous Flux EM 25°C, Rated 600 Lm
Luminous Flux EM 25°C, Nominal 600 Lm
Lum Efficacy Rated EM 25°C 60 Lm/W
LLMF EM 2000h Rated 92 %
LLMF EM 4000h Rated 87 %
LLMF EM 6000h Rated 84 %
LLMF EM 8000h Rated 81 %
Design Temperature 28 C
Chromaticity Coordinate X 380 -
Chromaticity Coordinate Y 380 -

Electrical Characteristics
Lamp Wattage 10 W
Lamp Wattage EM 25°C, Nominal 10 W
Lamp Wattage EM 25°C, Rated 10.0 W
Lamp Voltage EM 25°C 63 V
Lamp Current EM 25°C 0.190 A
Dimmable no

Environmental Characteristics
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000h 13 kWh

Product Dimensions
Base Face to Base Face A 75.7 (max) mm
Insertion Length B 94.0 (max) mm
Overall Length C 116.4 (max) mm
Diameter D 27.1 (max) mm
Diameter D1 27.1 (max) mm

Product Data
Order code 927903884002
Full product name MASTER PL-C 10W/840/2P 1CT
Order product name MASTER PL-C 10W/840/2P 1CT/5X10CC
Pieces per pack 1
Packing configuration 5X10CC
Packs per outerbox 50
Bar code on pack - EAN1 8711500704986
Bar code on intermediate packing - EAN2 8711500733030
Bar code on outerbox - EAN3 8711500733047
Logistic code(s) - 12NC 927903884002
ILCOS code FSQ-10/40/1B-I-G24d=1
Net weight per piece 0.054 kg
