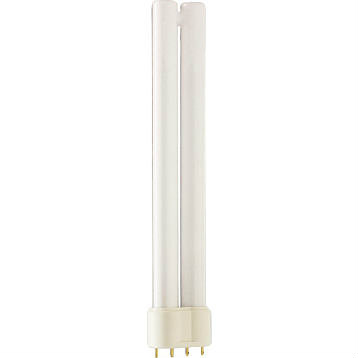

MASTER PL-L 4 Pin
Philips --- Compact Fluorescent Non Integrated ---
Previous ‹‹ | » Next |
Energy-saving compact fluorescent lamps Compact long-arc low-pressure mercury discharge lamp Envelope consists of two parallel fluorescent tubes
General Characteristics
Cap-Base | 2G11 |
Cap-Base Information | 4P |
Life to 10% failures EM | 10000 hr |
Life to 10% fail Preheat EL,3h | 14000 hr |
Life to 10% fail Nonpreh EL,3h | 7500 hr |
Life to 50% failures EM | 15000 hr |
Life to 50% fail Preheat EL,3h | 20000 hr |
Life to 50% fail Nonpreh EL,3h | 10000 hr |
LSF HF Preheat 2000h Rated,3h | 99 % |
LSF HF Preheat 4000h Rated,3h | 99 % |
LSF HF Preheat 6000h Rated,3h | 98 % |
LSF HF Preheat 8000h Rated,3h | 97 % |
LSF HF Preheat 12000h Rated,3h | 94 % |
LSF HF Preheat 16000h Rated,3h | 82 % |
LSF HF Preheat 20000h Rated,3h | 50 % |
LSF EM 2000h Rated,3h cycle | 99 % |
LSF EM 4000h Rated,3h cycle | 98 % |
LSF EM 6000h Rated,3h cycle | 96 % |
LSF EM 8000h Rated,3h cycle | 94 % |
LSF EM 12000h Rated,3h cycle | 80 % |
Light Technical Characteristics
Colour Code | 827 [CCT of 2700K] |
Colour Rendering Index | 82 Ra8 |
Colour Designation | Incandescent White |
Colour Temperature | 2700 K |
Lum Flux Rated EM 25°C,horiz | 1200 Lm |
Lum Flux Nominal EM 25°C,horiz | 1200 Lm |
Luminous Flux EL 25°C, Rated | 1200 Lm |
Luminous Flux EL 25°C, Nominal | 1200 Lm |
Lum Flux Rated HF 25°C,horiz | 1200 Lm |
Lum Flux Nominal HF 25°C,horiz | 1200 Lm |
Lum Efficacy Rated EM 25°C,hor | 67 Lm/W |
Lum Efficacy Rated HF 25°C,hor | 67 Lm/W |
LLMF HF 2000h Rated | 95 % |
LLMF HF 4000h Rated | 94 % |
LLMF HF 6000h Rated | 93 % |
LLMF HF 8000h Rated | 92 % |
LLMF HF 12000h Rated | 91 % |
LLMF HF 16000h Rated | 90 % |
LLMF HF 20000h Rated | 90 % |
LLMF EM 2000h Rated | 94 % |
LLMF EM 4000h Rated | 93 % |
LLMF EM 6000h Rated | 92 % |
LLMF EM 8000h Rated | 91 % |
LLMF EM 12000h Rated | 90 % |
Design Temperature | 30 C |
Chromaticity Coordinate X | 465 - |
Chromaticity Coordinate Y | 420 - |
Electrical Characteristics
Lamp Wattage | 18 W |
Lamp Wattage EM 25°C, Nominal | 18 W |
Lamp Wattage EM 25°C, Rated | 18.0 W |
Lamp Wattage EL 25°C, Rated | 18.0 W |
Lamp Wattage EL 25°C, Nominal | 18 W |
Lamp Voltage EM 25°C | 58 V |
Lamp Voltage EL 25°C | 50 V |
Lamp Current EM 25°C | 0.375 A |
Lamp Current EL 25°C | 0.320 A |
Dimmable | yes |
Environmental Characteristics
Energy Efficiency Label (EEL) | A |
Mercury (Hg) Content | 2.0 mg |
Energy consumption kWh/1000h | 20 kWh |
Product Dimensions
Base Face to Base Face A | 194.2 (max) mm |
Insertion Length B | 220 (max) mm |
Overall Length C | 226.6 (max) mm |
Diameter D | 39.0 (max) mm |
Diameter D1 | 18.0 (max) mm |
Product Data
Order code | 927903008272 |
Full product name | MASTER PL-L 18W/827/4P 1CT |
Order product name | MASTER PL-L 18W/827/4P 1CT/25 |
Pieces per pack | 1 |
Packing configuration | 25 |
Packs per outerbox | 25 |
Bar code on pack - EAN1 | 8711500706676 |
Bar code on outerbox - EAN3 | 8711500710703 |
Logistic code(s) - 12NC | 927903008272 |
ILCOS code | FSD-18/27/1B-E-2G11 |
Net weight per piece | 60.900 gr |
