MASTER PL-T 2 Pin

     Philips ---    Compact Fluorescent Non Integrated    ---

Previous ‹‹ » Next

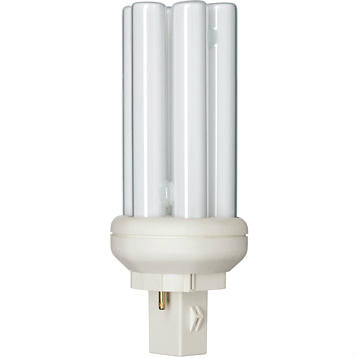

MASTER PL-T 2 Pin

Energy saving compact fluorescent lamp Compact long-arc low-pressure mercury discharge lamp Envelope consists of 6 parallel narrow fluorescent tubes

General Characteristics
Cap-Base GX24d-2
Cap-Base Information 2P
Life to 10% failures EM 6500 hr
Life to 50% failures EM 10000 hr
LSF EM 2000h Rated,3h cycle 99 %
LSF EM 4000h Rated,3h cycle 98 %
LSF EM 6000h Rated,3h cycle 92 %
LSF EM 8000h Rated,3h cycle 78 %

Light Technical Characteristics
Colour Code 827 [CCT of 2700K]
Colour Rendering Index 82 Ra8
Colour Designation Incandescent White
Colour Temperature 2700 K
Luminous Flux EM 25°C, Rated 1200 Lm
Luminous Flux EM 25°C, Nominal 1200 Lm
Lum Efficacy Rated EM 25°C 67 (min) Lm/W
LLMF EM 2000h Rated 92 %
LLMF EM 4000h Rated 87 %
LLMF EM 6000h Rated 84 %
LLMF EM 8000h Rated 81 %
Design Temperature 28 C
Chromaticity Coordinate X 455 -
Chromaticity Coordinate Y 417 -

Electrical Characteristics
Lamp Wattage 18 W
Lamp Wattage EM 25°C, Nominal 18 W
Lamp Wattage EM 25°C, Rated 18.0 W
Lamp Voltage EM 25°C 100 V
Lamp Current EM 25°C 0.225 A
Dimmable no

Environmental Characteristics
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000h 22 kWh

Product Dimensions
Base Face to Base Face A 71.8 (max) mm
Insertion Length B 96.0 (max) mm
Overall Length C 119.2 (max) mm
Diameter D 41 (max) mm

Product Data
Order code 927914382771
Full product name MASTER PL-T 18W/827/2P 1CT
Order product name MASTER PL-T 18W/827/2P 1CT/5X10CC
Pieces per pack 1
Packing configuration 5X10CC
Packs per outerbox 50
Bar code on pack - EAN1 8711500559791
Bar code on intermediate packing - EAN2 8711500559807
Bar code on outerbox - EAN3 8711500559814
Logistic code(s) - 12NC 927914382771
ILCOS code FSM-18/27/1B-I-GX24d=2
Net weight per piece 59.000 gr
