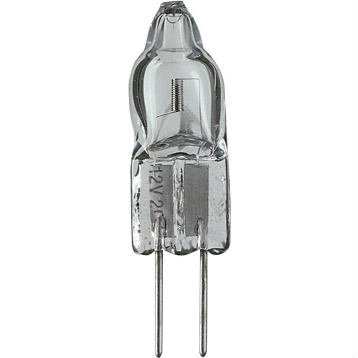

Ess Capsule 10W G4 12V CL 2BC
Philips --- LV HALOGEN ---
Previous ‹‹ | » Next |
Product Information
General Characteristics
Philips Code | 14728 |
Cap-Base | G4 |
Cap-Base Information | na |
Bulb | T3 [T3: .354 inch / 9 mm] |
Bulb Finish | Clear |
Burning Position | any [Any/Universal] |
Life to 50% failures | 2000 hr |
Nominal Lifetime | 2000 hr |
Rated Lifetime | 2000 hr |
Rated Lifetime (years) | 2 an |
Light Technical Characteristics
Colour Rendering Index | 100 Ra8 |
Colour Temperature | 2700 K |
Colour Temperature Technical | 2700 K |
Lamp Luminous Flux | 100 Lm |
Rated Luminous Flux | 100 Lm |
Lamp Luminous Efficacy | 10 Lm/W |
LLMF - end nominal lifetime | 85 % |
Electrical Characteristics
Rated Wattage | 10 W |
Lamp Wattage | 10 W |
Technical Lamp Power | 10 W |
Power Factor | 1 - |
Voltage | 12 V |
Lamp Current | 0.83 A |
Dimmable | yes |
Starting Time | 0.0 s |
Warm-up Time to 60% Light Outp | instant full light |
Measuring Conditions
Switching cycle | 8000X |
Luminaire Design Requirements
Pinch Temperature | 350 (max) C |
Bulb Temperature | 900 (max) C |
Product Dimensions
Overall Length C | 33 (max) mm |
Diameter D | 10 (max) mm |
Light Center Length L | 22 mm |
Product Data
Order code | 924058017105 |
Full product name | Ess Capsule 10W G4 12V CL 2BC |
Order product name | Ess Capsule 10W G4 12V CL 2BC/10 |
Pieces per pack | 2 |
Packing configuration | 10 |
Packs per outerbox | 10 |
Bar code on pack - EAN1 | 8711500887528 |
Bar code on outerbox - EAN3 | 8711500887535 |
Logistic code(s) - 12NC | 924058017105 |
Net weight per piece | 0.001 kg |
